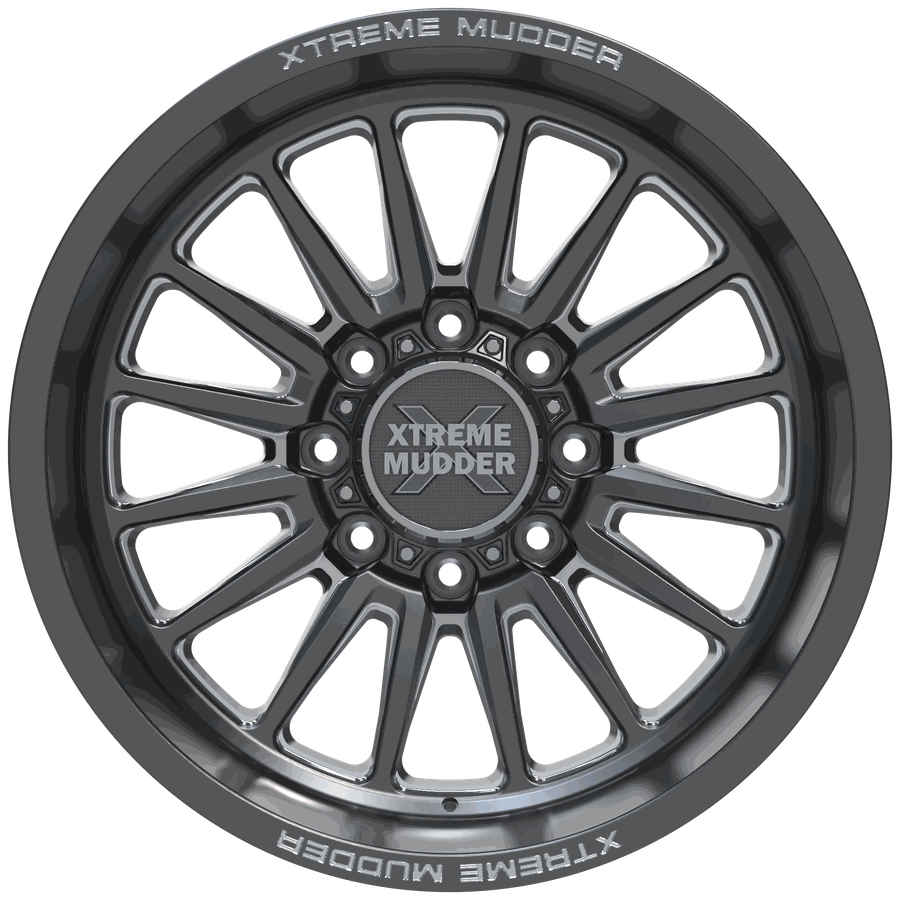

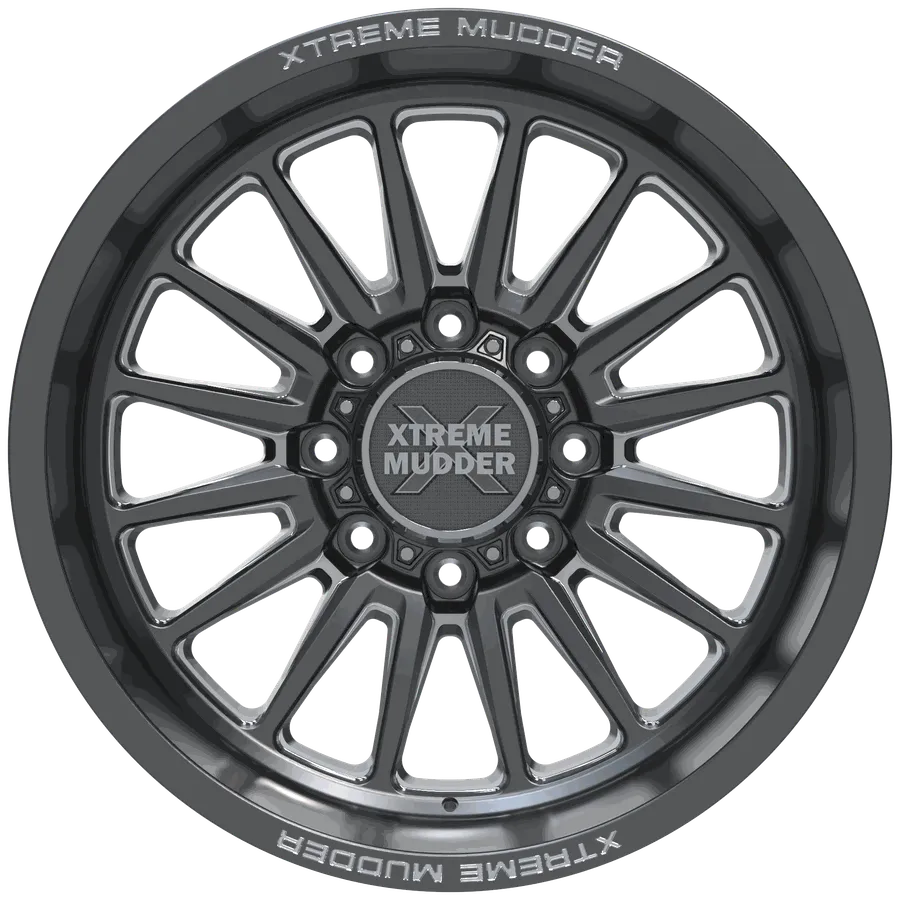

XM-21
Precision Forged · 1-piece
Precision Forged
XM-21
from $497
per wheel
Size · Select a size
This wheel isn't available to order online in this finish. Contact us about it →
Vehicle Fitment
MakeLoading makes…▾
ModelPick a make first▾
YearPick a model first▾
TrimPick a year first▾
Asked once. Every wheel after this one is already filled in.
1
- Free shipping · USA, UK, AUS
- Lifetime warranty · structural
Specification
Your Selection—
Finish—
Size
Wheel Spec—
Lug Count10-lug
Bolt Pattern10×114.3 · 10×139.7 · 12×135 · 8×165.1 · 8×170
Offset (ET)ET -10
Construction1-Piece Forged Monoblock
Material6061-T6 Aluminium
Centre Bore78.1 / 108.1 / 110.1 / 125.1 mm
Load Rating2,500 lbs
Bump ProfileH2
Rim Profile—
Cap Code—
StandardsJWL · VIA · TÜV
Wheel Dimension Diagram
⌀ 20"WIDTH 9.5"
Holes
10
PCD
114.3
Spokes
5
Bore
108.1 mm
ET
35
What it fits
| Diameter | Width | Holes | PCD | ET | C/B | Cap | Bolt Pattern | Load Rating |
|---|---|---|---|---|---|---|---|---|
| 20 | 10 | 10 | 114.3 | -10 | 78.1 | 10×114.3 | 2,500 lbs | |
| 20 | 10 | 10 | 139.7 | -10 | 110.1 | 10×139.7 | 2,500 lbs | |
| 20 | 10 | 12 | 135 | -10 | 108.1 | 12×135 | 2,500 lbs | |
| 20 | 10 | 8 | 165.1 | -10 | 125.1 | 8×165.1 | 3,700 lbs | |
| 20 | 10 | 8 | 170 | -10 | 125.1 | 8×170 | 3,700 lbs |
Checked on bolt pattern, offset, hub bore and load rating.
